ชำแหละ The new iPad มาดูกันชัด ๆ ว่าส่วนประกอบภายในมีอะไรกันบ้าง !!!

Published

on



     หลังจากที่ The new iPad ได้เปิดขายกันอย่างเป็นการทางแล้ว มีหลายคนก็ได้จับจองเป็นเจ้าของกันแล้ว และสำหรับในวันนี้เราจะนำภาพการแยกชิ้นส่วนประกอบต่าง ๆ ของ The new iPad โดยเว็บไซต์ iFixit ชื่อดังเจ้าเก่าที่เคยชำแหละ iDevices มาแล้วเกือบทุกรุ่น



     [yframe url=’http://www.youtube.com/watch?v=VXuFZE9g3iE’]

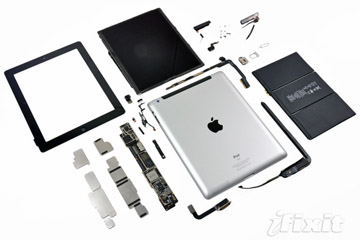

    เรามาดูกันครับขั้นตอนในการชำแหละและสิ่งที่อยู่ภายใน The new iPad หน้าตาจะเป็นยังไงและประกอบไปด้วยอะไรกันบ้าง

standard image 1

Step 1 — iPad 3 4G Teardown
►Luke flew to the Telstra store in Melbourne, Australia and was first in line to get the iPad 3 for our deconstructive pleasure.
►A big thanks to Macfixit Australia for letting us use their facility for the teardown!
►Tech Specs:

  • Dual-core Apple A5X processor
  • 9.7 inch LCD backlit in-plane switching LED with 2048×1536 pixel Retina display
  • Quad-core graphics processor
  • 16, 32, or 64 GB flash memory
  • 5 MP HD rear-facing camera



first image

Step 2
►It’s go time! What does an iFixit teardown expert need to dismember the newest iPad at midnight on the other side of the world?

  • Answer: A Pro Tech Base Toolkit, some good ol’ Red Bull, and—of course—the iPad 3.

►Despite our office being in the United States, and the iPad 3 being debuted in Australia, we are fairly confident that it will still work.
►If you want to follow along on your own iPad, our native iOS app is a great way to go.



first image

standard image 2

Step 3
►We spoke too soon. It appears that 4G LTE on the iPad 3 does not actually work in the land of Oz.
►Uh-oh, which iPad is this? iPad 2 3G? iPad 3 4G? iPad N (N+1)G?

  • Luckily for everybody, the model number is unique, unlike some of Apple’s other products. The model number is A1430.



standard image 1

standard image 2

standard image 3

Step 4
►So this is what the rear panel of a new “new iPad” looks like. Do you know what it sort of reminds us of?
►The 5 MP iSight rear-facing camera boasts autofocus, face detection, 1080p HD video recording, and video stabilization. Definitely a great improvement over last year’s weak 0.7 MP rear-facing camera.
►The 2048×1536 pixel Retina display doesn’t do much to amaze us once we turn the iPad off, but we didn’t fly halfway across the world just to play Punch a Hipster.



standard image 1

standard image 2

standard image 3

Step 5
Some heat, guitar picks, and a plastic opening tool make quick arduous work of removing budging the front panel.



first image

Step 6
►Just like its predecessor, the new iPad is very difficult to disassemble. Adhesive secures the glass to the case, making common repairs and battery replacement difficult.
►Apple is estimated to ship 1 million units on launch day, and the environmental impact of this unfortunate design choice will be significant.
►We’ve written extensively about the problems with Apple’s difficult-to-repair iPad design over on iFixit.org:

  • Ever Broken a Textbook Beyond Repair? Now, with iBooks, You Can!
  • Yes, the iPad is Repairable—But Just Barely.



standard image 1

Step 7
►A heavy-duty display should only be removed with heavy-duty suction cups.
►The first legitimately-purchased, legitimately-owned iPad 3 is now also the first legitimately-opened iPad … in the world.
►Apparently, the new iPad has a face, and it’s not happy. Look familiar?



standard image 1

standard image 2

standard image 3

Step 8
►And now, a message from our sponsor: us!
►We don’t just make awesome teardowns—we sell parts. And tools! Lots and lots of tools.
►Like this handy-dandy electronics tool kit that we used to take apart the new iPad. You know you want one. Just $59.95. It’ll pay for itself the first time you use it!
►We sell Mac parts & upgrades, parts for iPhone screen repair, kits for fixing the infamous Xbox Red Ring of Death, and tons more.
►We need your support to continue building the free repair manual for everything in the world.



standard image 1

standard image 2

Step 9
►Well, this display is screwed…to the case. Luckily, we have a BS degree in removing screws, so this poses no challenge.
►Rather than enjoy the 264 pixels per inch on this brand new device, we opt to remove the acclaimed display. Why? Because we’re iFixit, and that’s how we roll.
►As we lift the LCD, we hear the cries of 3,145,728 pixels being dislodged from their homes inside the iPad 3.



standard image 1

standard image 2

standard image 3

Step 10
►It’s time to cut spudge the umbilical cord on the display and touchscreen.
►As we mentioned in our sneak-peek video, the display connectors in the iPad 2 and iPad 3 are different, meaning the two displays are incompatible…for now.



standard image 1

standard image 2

Step 11
►The model numbers on the back of the 9.7 inch LCD lead us to believe this is a Samsung LCD.
►Beside the numbers we find three mysterious matrix barcodes. They allure the teardown expert, a dubious distraction indeed. What do they do? Our best guess: crash your iPhone or turn it into an iPad…scan at your own risk.



standard image 1

Step 12
►Connectors and screws, connectors and screws, to secure a logic board, that’s what you use!
►We might not be very good at writing poetry, but with spudger and screwdriver in hand, we are masters of our craft.



standard image 2

Step 13
Come now, iPad. Let go of your logic board, please.
Thank you Siri… Siri? Are you there? (silence)



standard image 2

Step 14
The logic board is out!
Using some leftover pixie dust from our iPhone 4S teardown, we will remove the EMI Shields to fly off so we can take a peek at the logic board.



first image

Step 15
►Chips, Chips, Chips. Here’s some of the salsa on the non-A5X side of the logic board:
Texas Instruments CD3240 driver device
Broadcom BCM4330 802.11a/b/g/n MAC/baseband/radio with integrated Bluetooth 4.0+HS and FM transceiver
2 x 4Gb Elpida LP DDR2 = 1 GB DRAM in separate packages in a 64-bit configuration
Fairchild FDMC 6683
Broadcom BCM5973 I/O controller
Broadcom BCM5974 microprocessor
►Apple 338S0987 (Cirrus Logic audio codec)



first image

Step 17
…and here’s some more salsa on the other end of the non-A5X side:
Qualcomm PM8028 Power Management IC
Qualcomm RTR8600 multi-band/mode RF transceiver for 3G and 4GLTE bands
Toshiba Y0A0000 Memory MCP
Triquint TQM7M5013 quad-band linear power amplifier module
Avago A5904
Skyworks SKY77468-17 front-end module

 และพระเอกของงานนี้ก็คือ cpu A5X นั่นเอง ขุมพลังที่จะทำให้ new iPad ประมวลผลและทำงานได้อย่างรวดเร็ว

standard image 1

Step 18
Some crafty spudgering reveals the A5X processor in all its glory.
Like the A5, the A5X system features a 1 GHz dual-core CPU. The upgrade that earns it an ‘X’ is the new GPU, which Apple claims outperforms even Nvidia’s Tegra 3 processor.
This particular chip was manufactured in the first week of 2012. Maybe our iPad marks the start of the end of the world.
Not prepared? There’s an app or two for that…



first image

Step 19
An entirely-new side of the logic board:
Apple A5X processor
Apple 343S0561 – This IC looks like an updated version of the 343S052 that we found in the iPad 2, and is used for power management.
The NAND, part number THGVX1G7D2GLA08 is a 16 GB 24 nm MLC Flash from Toshiba
Qualcomm MDM9600 – 3G and 4G wireless modem
Skyworks 77469
Avago A7792
A big and hearty thanks to Chipworks for helping us ID these chips!



first image

Step 20
So here’s a bonus for all of you: the A5X cover removed.
Underneath the cover we find the A5X processor flip chip mounted onto the carrier PWB.
It’s a safe bet that the A5X cover is a heat sink for the CPU, given there’s thermal paste underneath and a thermal pad on top of the cover.
The A5X measures 12.82 mm x 12.71 mm (162 mm^2) which is 36% larger than the A5.



standard image 2

Step 21
As is the case with most tablets, the iPad 3 is really just a giant battery.
Some help from our spudger allows us to remove the battery from the device for further inspection.
While the iPad 2 housed a formidable 25 watt-hour Li-ion battery, the iPad 3 has upped the ante to the tune of 42.5 watt-hours.
Its 3.7 volts and estimated 10 hours of use (9 with cellular data network) are comparable to that of the iPad 2, but we assume the extra 17.5 watt-hours are put to good use powering the extra RAM and greatly improved GPU.



standard image 2

Step 22
Each separate cell lists its rating of 3.78 volts and 14.60 watt-hour. They’re graced with some more matrix barcode tags and wonderful inscriptions that read 741-0065-A P11GG9-01-F01TS. Swoon.
Chris Foresman at Ars Technica compared the energy density to the battery in the iPad 2, and it comes out about the same—around 0.0014 watt-hour / mm^3.
Apple physically increased the size of each cell by about 70%, explaining the big jump from 25 to 42 watt-hours.
Apple claims the new iPad is environmentally friendly with a “Recyclable aluminum and glass enclosure.” The materials may be recyclable, but the assembled unit is not. We spoke yesterday with Steve Skurnac, president of SIMS Recycling Solutions—one of the largest electronics recyclers in the world. He told us, “Sealed units make it difficult to remove the batteries. From a recycler’s point of view, the hazardous components [like batteries] need to be easily separated or removed.”



standard image 2

Step 23
As we progress through the teardown, what remains is just the carcass of a once mighty iPad.
Being the vultures that we are, let’s continue picking away at the remains of this aluminum beast…first on our list is the dock connector.
The dock connector seems to have the same pin layout as the iPad 2, we have yet to determine whether or not the dock connectors are swappable.
Pesky, finicky screws! Be gone and let us remove the antenna in peace.



standard image 1

Step 24
Get out of the way, ribbon cable! Let us get a look at that micro-SIM card slot.
Like the other iPads with micro-SIM cards, the iPad 3 4G has a user-accessible micro-SIM card slot that can be ejected with the help of a handy SIM card eject tool.
Sorry, former Amp’d Mobile users, this iPad can only be used on AT&T and Verizon networks.



standard image 1

standard image 3

Step 25
The headphone jack and one of the many wireless antennas come out as a single unit. Bummer.
Well hello there! Fancy to meet you here iSight camera.
You have what specs? Oh, a 5 element lens, an IR filter, and auto exposure. Stop it iSight, you’re making us blush…
UPDATE: Chipworks found out that the primary camera is indeed the same image sensor Apple used on the iPhone 4: Omnivision OV5650, 1.75 um pixel pitch, 5 MP back illuminated CMOS Image Sensor.
The secondary image sensor is also an Omnivision, the OV297AA. 0.3 Mp, 3.0 um pixel pitch CMOS Image Sensor



standard image 1

standard image 2

Step 26
Pulling out other fine parts, such as the front-facing camera and antenna.
Whether you’re video chatting or fixing your hair, the front-facing camera is sure to meet all of your low resolution photography and video needs.



standard image 1

Step 27
What an array of buttons and switches! This truly is a sight to see. Buttons of all kinds. Switches of all types. So many!
The speaker assembly is the next victim on our list. Farewell speakers!



first image

Step 28
iPad 3 Repairability Score: 2 out of 10 (10 is easiest to repair)
The LCD is easy to remove once the front panel is gone.
The battery is not soldered to the logic board, making the replacement process a tad less difficult.
Just like the iPad 2, the front panel is glued to the rest of the device, greatly increasing the chances of cracking the glass when trying to remove it.
Gobs, gobs, and gobs of adhesive hold down everything in place, including the prone-to-start-a-fire-if-punctured battery.
The LCD has foam sticky tape adhering it to the front panel, increasing chances of it being shattered during disassembly
You can’t access the front panel’s connector until you remove the LCD.

ที่มา : ifixit.com
